Eltek Rectiverter Integrated 2U 48VDC 6kVA 1ph CTOR0402.1

Product Categories

Beijing Guoguang Xingda Technology Co.,ltd

Contact Now

Name: Eltek Rectiverter Integrated 2U 48VDC 6kVA 1ph CTOR04021
Brand: Eltek
Price: 2500 USD

Brand Name : Eltek

Model Number : CTOR0402.1

Certification : CE SGS UL 60950-1

Place of Origin : China

MOQ : 10

Price : USD2500-5500

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200sets/month

Delivery Time : 1 week * depends on quantity

Packaging Details : Original Packed by Carton

Model : Rectiverter Integrated 2U, 48VDC 6kVA 1ph CTOR0402.1

Voltage (default) / (adjustable range : 230 VAC / 200-240 VAC

Frequency (inverter mode – default) : 50 Hz (adaptive)

Power maximum (continuous / overload <15s) : 4800 W (6000 VA) / 8000 VA

Current maximum (continuous / overload <15s) : 26 ARMS / 34,8 ARMS

Current (maximum) quick trip (20ms) : 128 A (6 x nominal)

Hold up (Voltage dips) (before switching to battery) : 5 ms

Contact Now

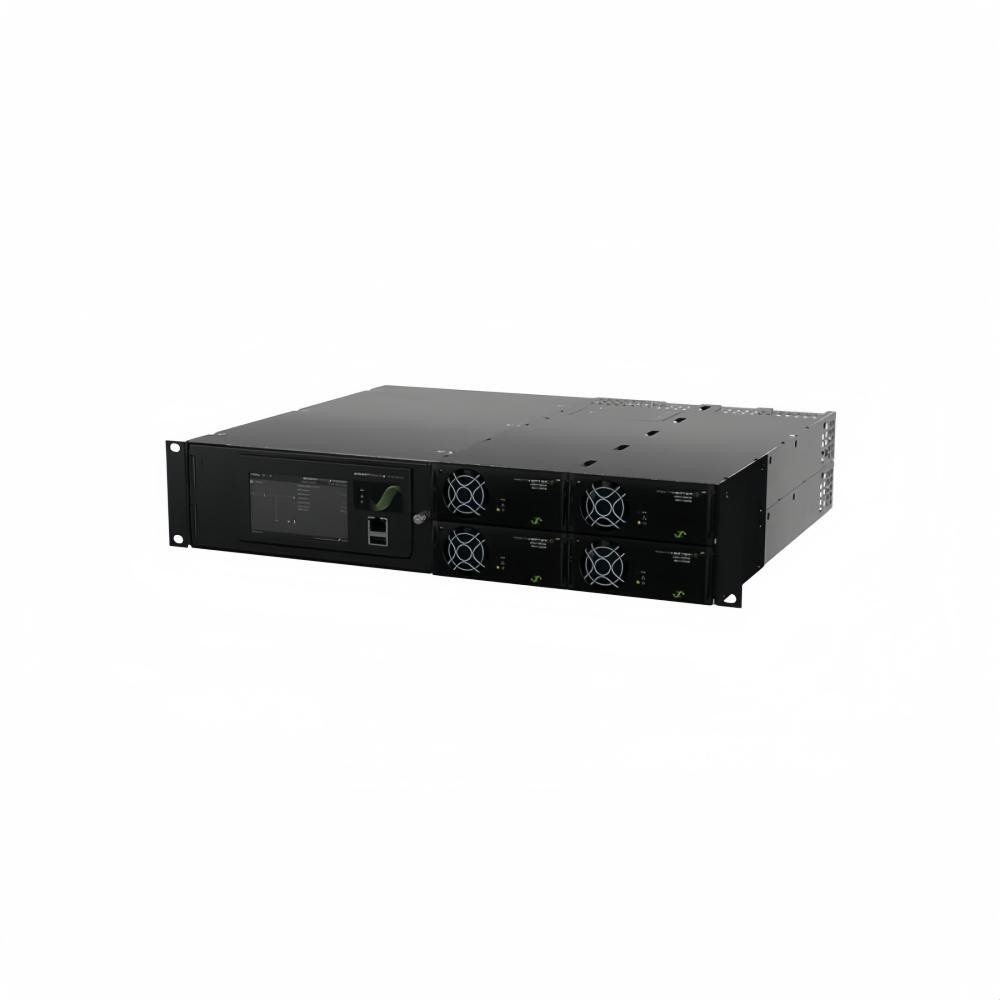

Rectiverter Integrated 2U, 48VDC 6kVA 1ph CTOR0402.1

The Rectiverter 2U 19” Integrated System can beused as a standalone system bulk AC & DC output sintelecom applications where a 230/115VACand 48 VDCbackup is needed.
The total output power for both AC and DCis limited to a total 8 kW. AC and DC output limits can be set according to the connected load, where the limitation for AC load is set to max 6kVAand for DC load to max 4,8 kW.
As additional options, the measuring and signaling can be widely extended with the I/O Monitor CAN node

Eltek Rectiverter Integrated 2U 48VDC 6kVA 1ph CTOR0402.1
