4000W Huawei S4875G6 Solar Power Module with Output Voltage -43.2 V dc -58 V dc

Brand Name : Huawei

Model Number : S4875G6

Certification : CE RE

Place of Origin : China

MOQ : 20

Price : 290-450USD/PCS

Payment Terms : T/T

Supply Ability : 300pcs/month

Delivery Time : 1 week

Packaging Details : Original Packed by Carton

Brand : Huawei

Model : S4875G6

Maximum Output Power : 4000 W

Input_Voltage : 85 V dc ~ 435 V dc

Maximum Input Curren : 1 × 25 A

Number of PV Modules Connectable : 3-8 PV modules in series for one string

MPPT Tracking Accuracy : ≥ 99.8%

Output Voltage : -43.2 V dc ~ -58 V dc

Contact Now

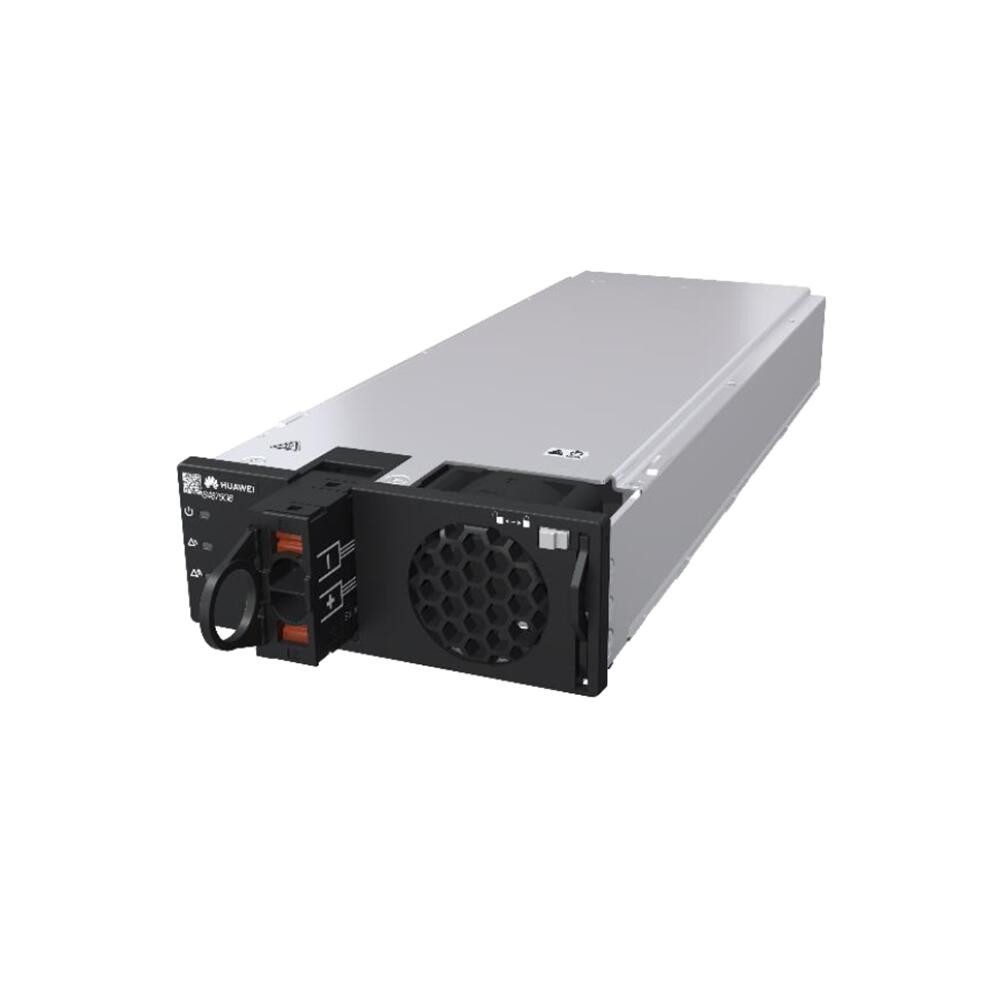

PowerCube1000 Advanced Hybrid Power Supply Solar Power Module S4875G6

The S4875G6 is a high-efficiency DC/Dc conversion module. lt supportsa wide DC voltage input from conventional photovoltaic modules (85Vdc to 435 Vdc). lt defaults to 53.5 Vdc output, adjustable via the powermonitoring module. The module supports overcurrent protection, output over voltage protection, and over temperature protection. lt is equipped with fan cooling and provides front-to-back airflow.

Specifications
Product Type Solar Power Module S4875G6
Basic Specifications
Dimensions(W*D*H) 105 mm×269 mm×40.8 mm(excludingthelengthofthegoldenfinger)
Weight < 2.5 kg
Lightning Protection Double wire to ground common mode±10 kA 8/20 us
Certificates CE:Compliant with CISPR32,input port: ClassA,output port: ClassA;RE: Compliant with CISPR32,ClassB
Protection Level IP20
Installation Method Compatible with Huawei power insertion frame and 75A rectifier module slot
Maintenance Method Front-in,back-outwiring
Input Characteristics
Input Voltage Range 85 V dc ~ 435 V dc
Maximum Input Current 1×25 A
Maximum Input Power 4000 W
Numberof PV Modules 3-8 pcsPVmodulesinseriesforonestring
MPPT Tracking Accuracy ≥99.8%
Output Characteristics
Output Voltage -43.2 V dc ~-58 V dc
Regulation Accuracy ≤±0.6%
Noise and Ripple ≤200 mV((Bandwidth≤20M)
Peak Efficiency ≥97.5%
Standby Consumption ≤3 W
Environmental Requirements
Operating Temperature -25℃ ~ +75℃ (-40℃capable forstartup)
StorageTemperature -40℃～＋75℃
MTBF ＞500,000hours(40℃)
Noise Leve ≤55 dB(A)(25℃)
Relative Humidity 5%~95%
Altitude 0 ~ 5000 m (2000~5000m,de-rateby1℃per200mrise)
Cooling Forced air cooling (built-infan)
Overtem.Protection Auto-resume normal operation once the temperature returns to the normal range
